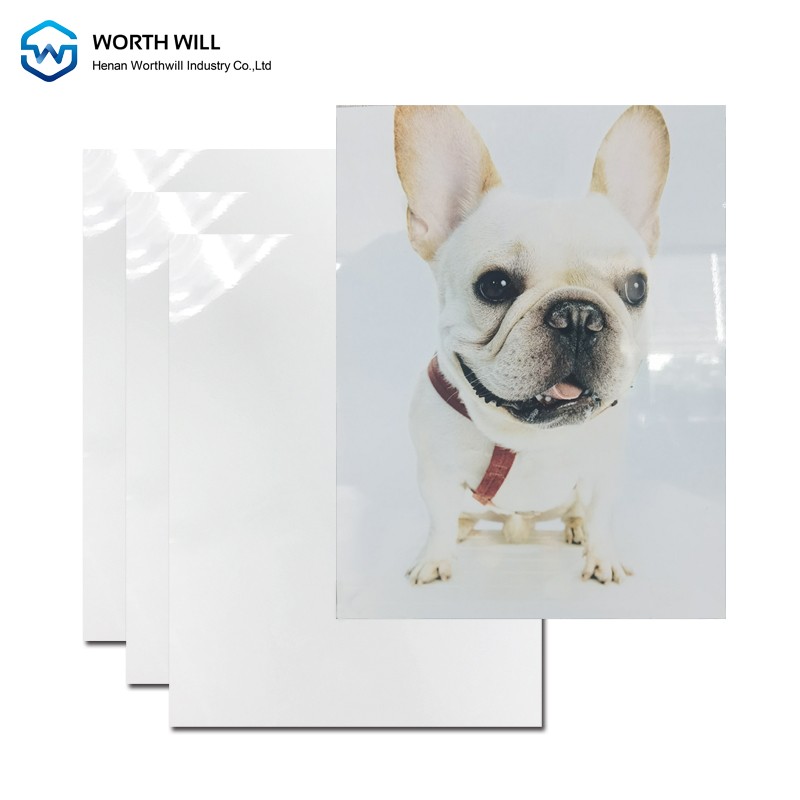

Aluminum sublimation sheets are coated aluminum panels developed for dye sublimation printing. The printable coating accepts sublimation dyes under heat and pressure, allowing photos, graphics, text and logos to be transferred onto a rigid metal surface with clear details, smooth gradients and a professional appearance.
Worthwill supplies aluminum sublimation sheets as full sheets, cut-to-size panels and finished aluminum sublimation blanks. Common thicknesses include 0.25mm, 0.35mm, 0.45 mm, 0.65 mm, 1.0 mm and 1.15mm, with high glossy white, matte white, pearl, brushed, satin, titanium and mirror finishes available. Rectangle, square, rounded-corner, round and pre-drilled blanks can be produced for photo panels, signs, nameplates, awards, wall décor and OEM printing products.
Aluminum sublimation sheet, also called sublimation aluminum sheet or sublimation metal sheet, is an aluminum substrate with a specially prepared printable coating for dye sublimation heat transfer. Unlike ordinary mill finish or standard color-coated aluminum, the printable face is designed to interact with sublimation ink during the heat-transfer process.
Henan Worthwill Industry Co., Ltd. supplies sublimation aluminum products for printing factories, distributors, sign makers, photo panel manufacturers, promotional-product suppliers and other B2B buyers. Orders can be supplied as standard sheets for downstream cutting, cut-to-size panels or ready-to-print aluminum sublimation blanks with finished corners, holes and customized dimensions.
For buyers sourcing in volume, the important specification is not simply “sublimation aluminum.” Thickness, finished dimensions, surface finish, printable face, corner treatment, hole position, protective film and packing method should be confirmed together before production.
A sublimation aluminum sheet consists of an aluminum base and a coating formulated for dye sublimation transfer. A printed transfer is placed against the coated side and heated in a flat heat press. Under the correct combination of heat, time and pressure, the sublimation dyes transfer into the printable coating.
The result is different from applying a paper label or surface sticker. The image is created through the sublimation coating itself, while the aluminum provides a lightweight, rigid and dimensionally stable base.
Printing performance depends on the complete system, including the coating, sublimation ink, transfer paper, heat press, temperature uniformity and pressing settings. For this reason, an approved printed sample is more useful than judging a sublimation sheet only by its unprinted appearance.
Clear and Vivid Image Reproduction: A consistent sublimation coating supports detailed photographs, gradients, logos, text and decorative graphics when matched with suitable ink, paper and press settings.
Lightweight Metal Base: Aluminum provides more rigidity than paper-based printing materials while remaining convenient to handle, cut, pack, mount and transport.
Multiple Visual Finishes: Buyers can select high glossy white, matte, pearl, brushed, satin, titanium or mirror surfaces according to the required printed appearance.
Flexible Blank Processing: Sublimation metal sheets can be supplied as full sheets, rectangular blanks, rounded-corner panels, circles, pre-drilled pieces or drawing-based custom shapes.
Suitable for Repeat B2B Production: Size, finish, blank geometry, hole locations, protective film and packing can be defined as purchasing specifications so repeat orders can be checked against an approved sample or drawing.

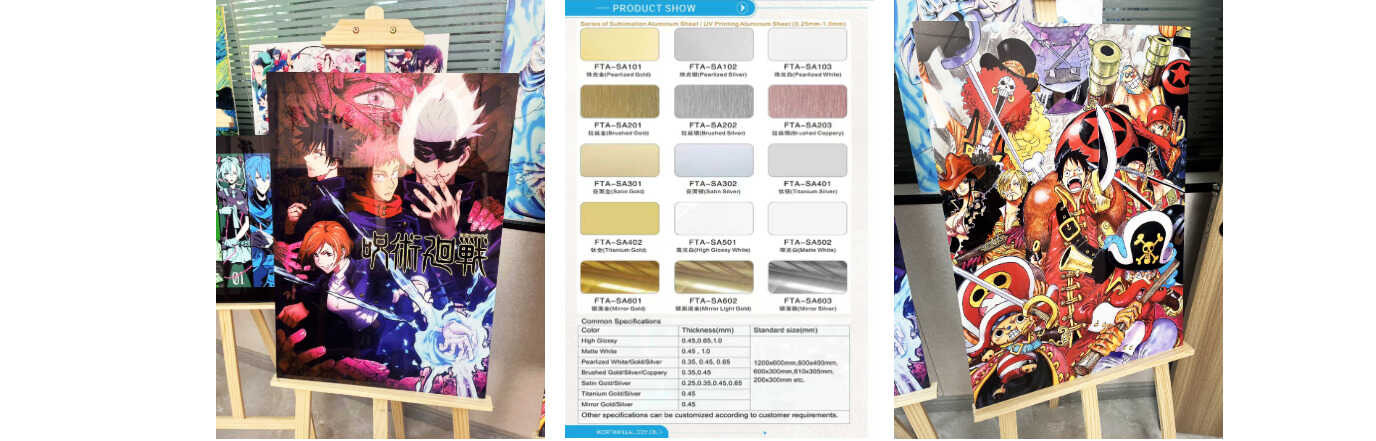

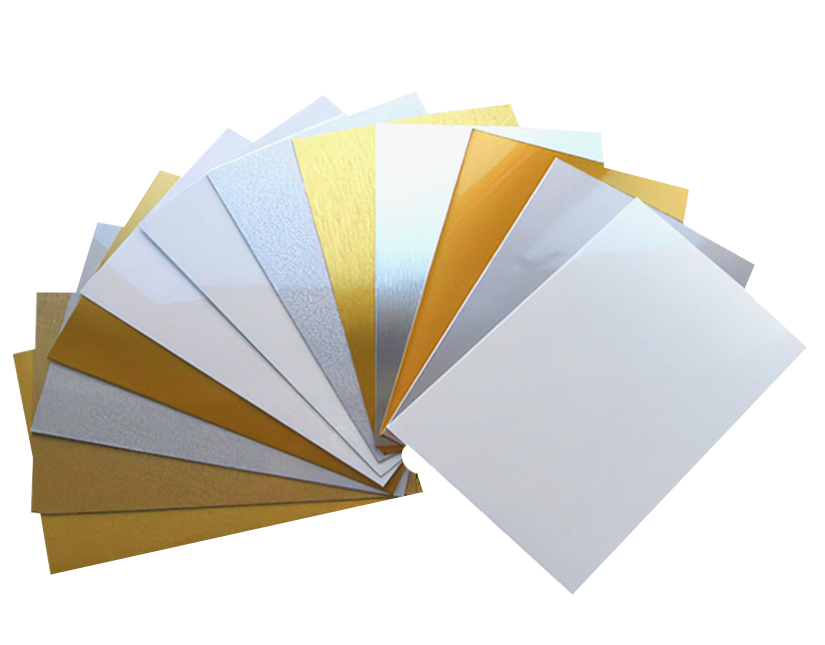

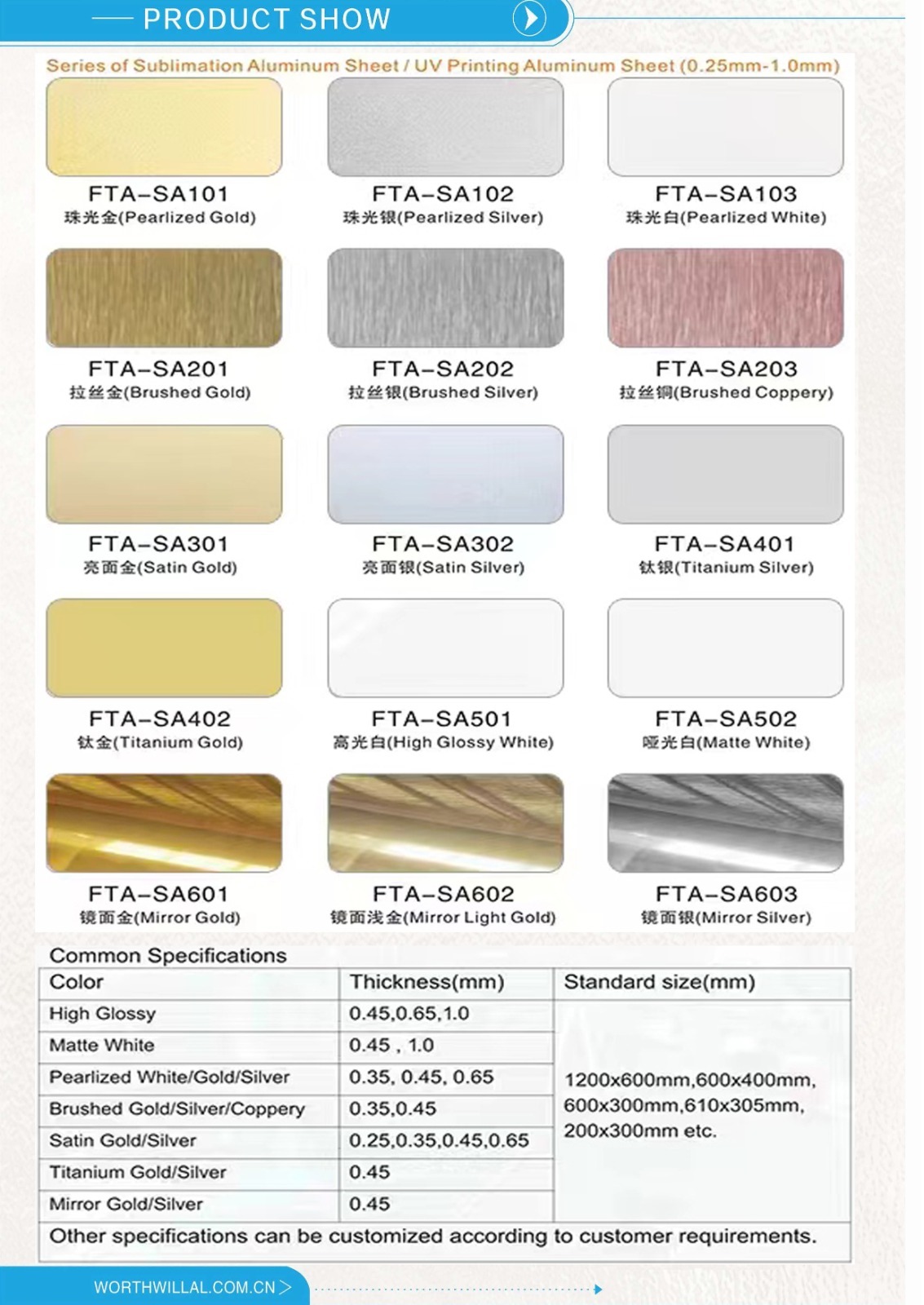

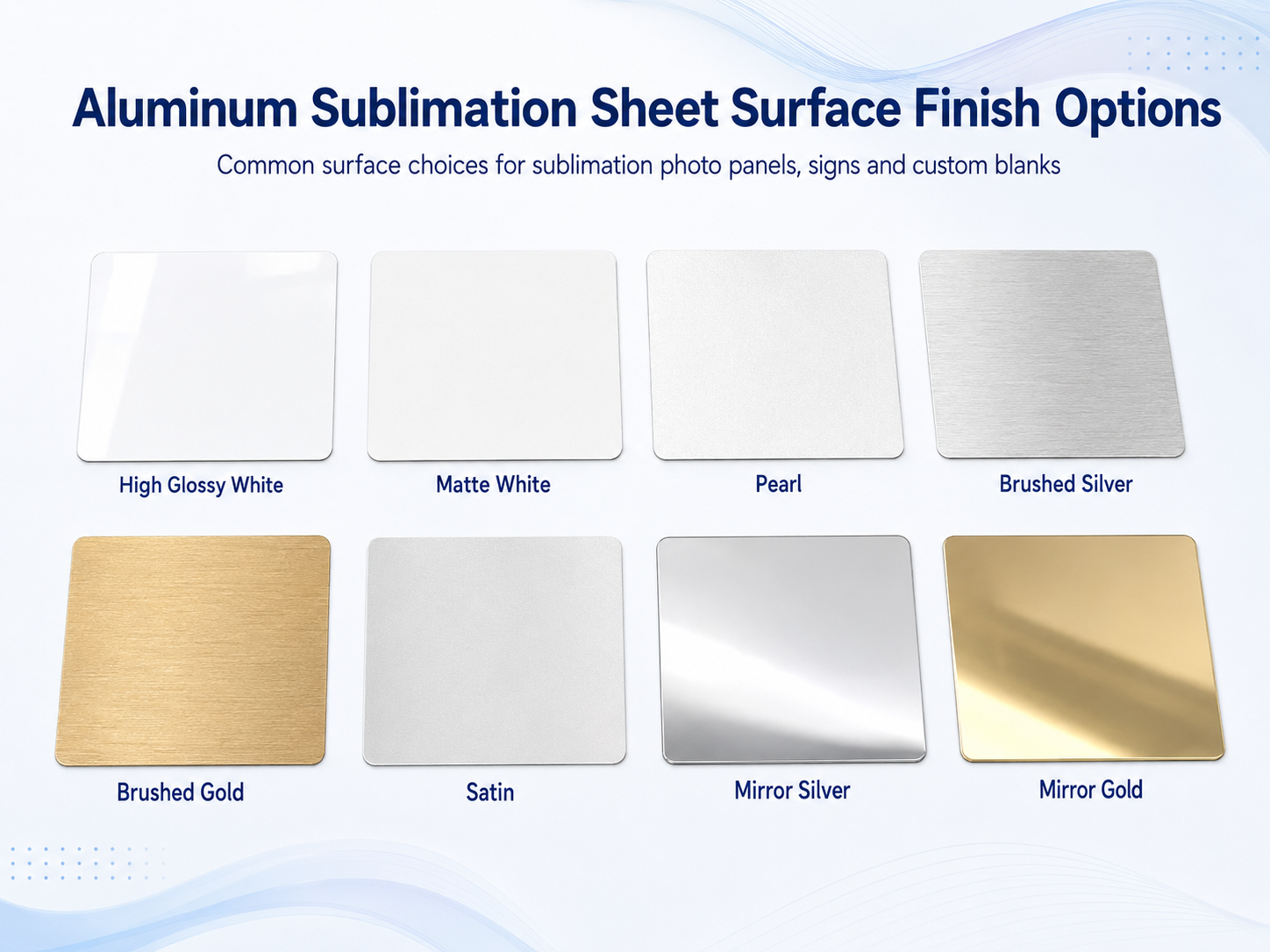

The surface finish affects how the unprinted aluminum looks and how the printed image is visually perceived. Finish selection should therefore be based on the final design rather than price alone.
| Surface Finish | Visual Character | Common Uses |
|---|---|---|
| High Glossy White | Bright white base with a reflective glossy surface; suitable when strong color contrast and photographic appearance are required | Photo panels, artwork, personalized prints, awards |
| Matte White | White printable surface with reduced glare | Signs, text-heavy graphics, display panels, decorative products |
| Pearl White / Gold / Silver | Subtle pearlescent appearance that changes with viewing angle and lighting | Decorative prints, gifts, awards, premium display products |
| Brushed Gold / Silver / Copper | Directional metallic grain remains visually noticeable around or through printed areas | Nameplates, decorative signs, artwork, premium blanks |
| Satin Gold / Silver | Softer metallic appearance than a highly reflective mirror finish | Awards, plaques, decorative panels |
| Titanium Gold / Silver | Refined metallic appearance for decorative and premium presentation | Gifts, awards, specialty graphics |
| Mirror Gold / Silver | Highly reflective metal-like surface | Decorative products, premium signage, awards and display pieces |
For brushed and other directional surfaces, the grain direction should be confirmed before cutting so all blanks in the same project have consistent orientation.
Color and finish names alone do not guarantee the same printed result between suppliers or coating batches. For appearance-critical orders, Worthwill recommends approving both an unprinted surface sample and a printed test sample before mass production.

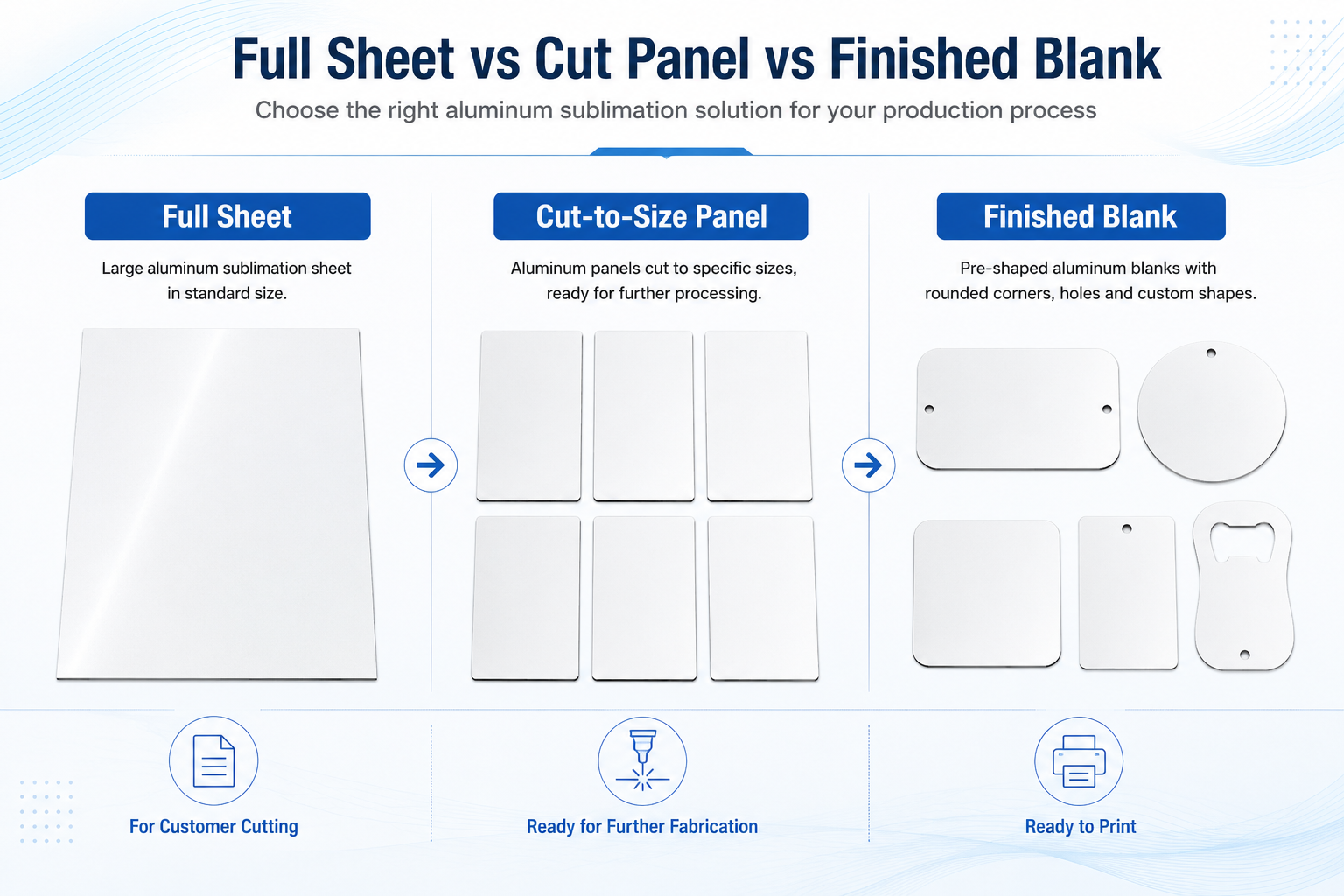

Different buyers need the material at different stages of fabrication. Selecting the correct supply condition can reduce unnecessary downstream processing.
| Supply Form | What You Receive | Suitable For |
|---|---|---|
| Full Sublimation Sheet | Large coated aluminum sheet ready for customer cutting and fabrication | Printing factories and distributors with their own cutting equipment |
| Cut-to-Size Panel | Rectangular or square panels cut to specified dimensions | Buyers that need controlled finished dimensions but perform their own corner or hole processing |
| Finished Sublimation Blank | Cut pieces with specified corners, circles, holes or other processing completed before delivery | Ready-to-print blank suppliers, photo-product manufacturers and repeat OEM programs |
| Custom Shape | Blanks produced according to drawing, dimensions or approved sample | Specialty signs, decorations, components and customized printing projects |
When requesting a quotation, clearly state whether the dimensions refer to a full sheet, a cut panel or the final finished blank.
Worthwill commonly supplies 0.25mm, 0.35mm, 0.45 mm, 0.65 mm, 1.0 mm and 1.15mm aluminum sublimation sheets. Other thicknesses can be discussed according to the application and order specification.
0.45 mm: A lightweight option frequently selected for smaller and medium-sized blanks where a thin profile and easy handling are important.
0.65 mm: Provides additional rigidity and is suitable for many photo panels, signs and general-purpose sublimation blanks.
1.0 mm: Offers greater stiffness and may be preferred for larger pieces or products that require a more substantial metal feel.
Thickness should not be selected according to printing quality alone. Panel dimensions, mounting method, unsupported span, edge processing, shipping method and finished-product rigidity should also be considered.
Common metric sizes: A4, A3, A2, 200 × 300 mm, 300 × 400 mm, 600 × 300 mm, 600 × 400 mm, 610 × 305 mm and 1200 × 600 mm.
Custom cutting is available for bulk orders. Inch-based sizes commonly requested by international sublimation markets, such as 5 × 7, 6 × 8, 8 × 10, 8 × 12, 11 × 14, 11 × 17, 12 × 18 and 12 × 24 inches, can be quoted as cut-to-size specifications subject to production confirmation.
For custom blanks, please specify finished length, width or diameter rather than giving only a general product name.

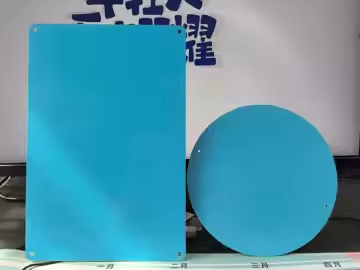

Rectangle and square blanks are commonly used for metal photo panels, wall art, advertising signs, certificates, product displays, nameplates and personalized printing products.
They can be supplied with square corners or processed further according to the finished-product drawing.

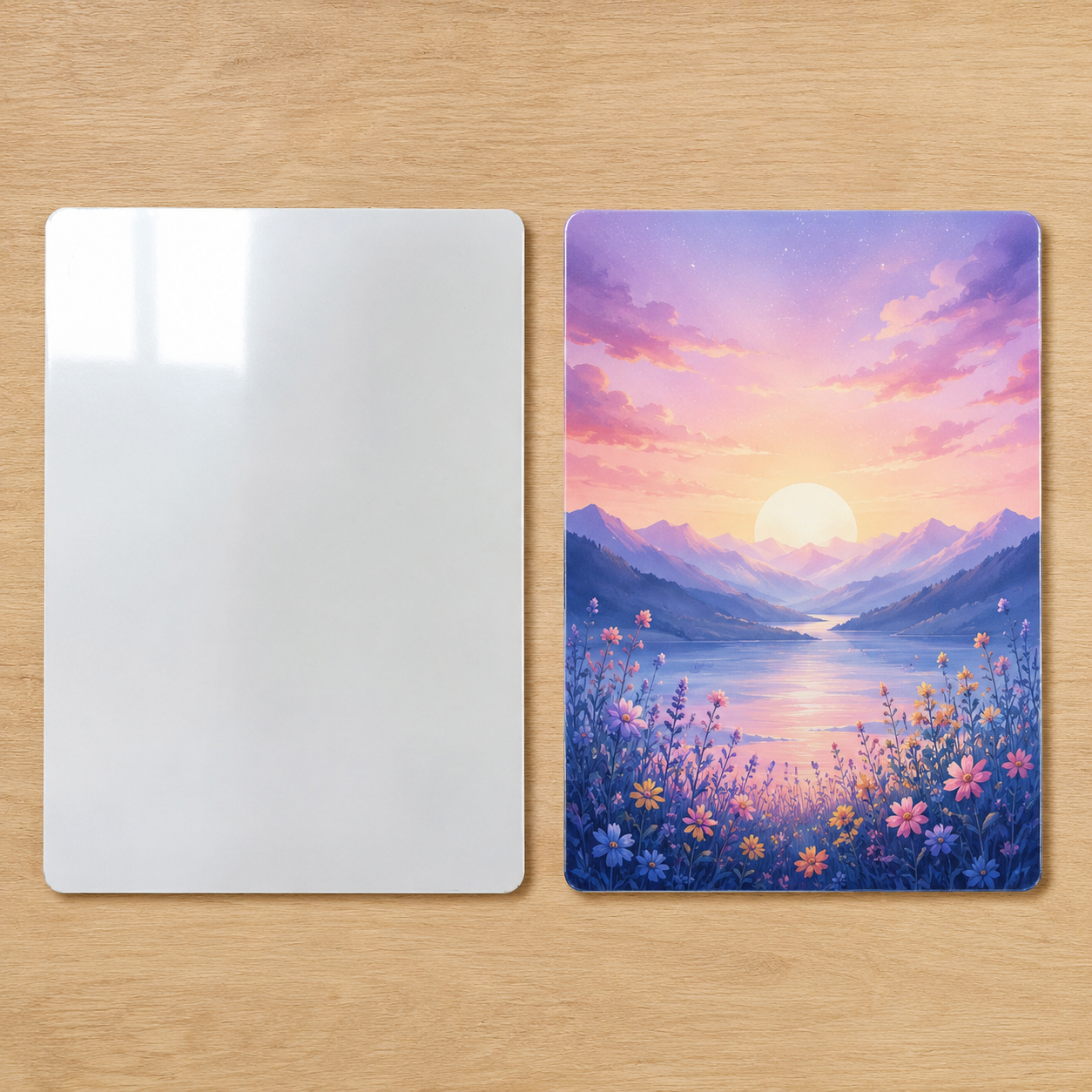

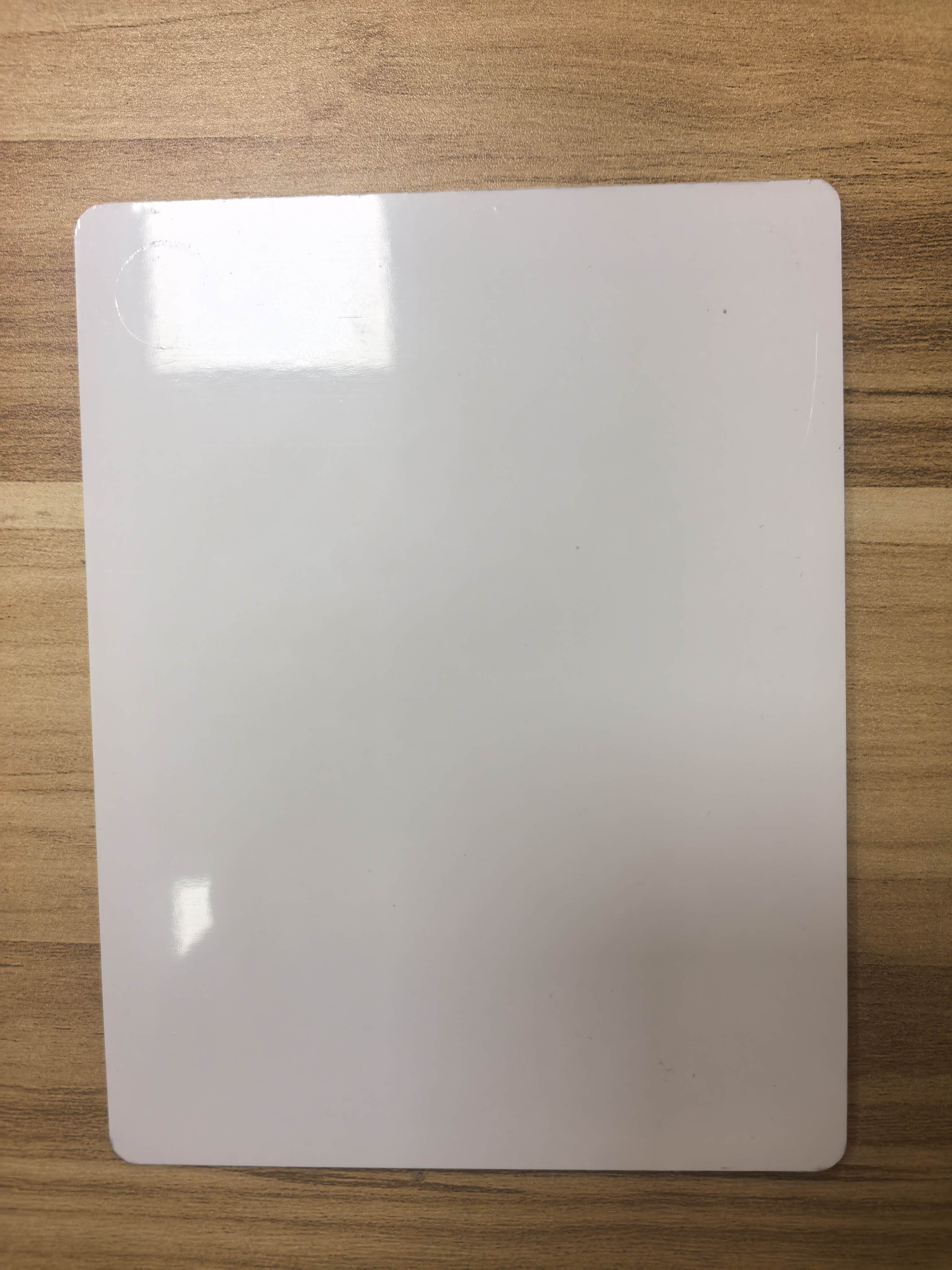

Rounded corners provide a more finished appearance and reduce exposed sharp corners during handling. Finished size and corner radius should be specified when ordering.
Rounded-corner aluminum blanks are commonly used for photo panels, desk plates, wall decoration, awards, signs and promotional products.

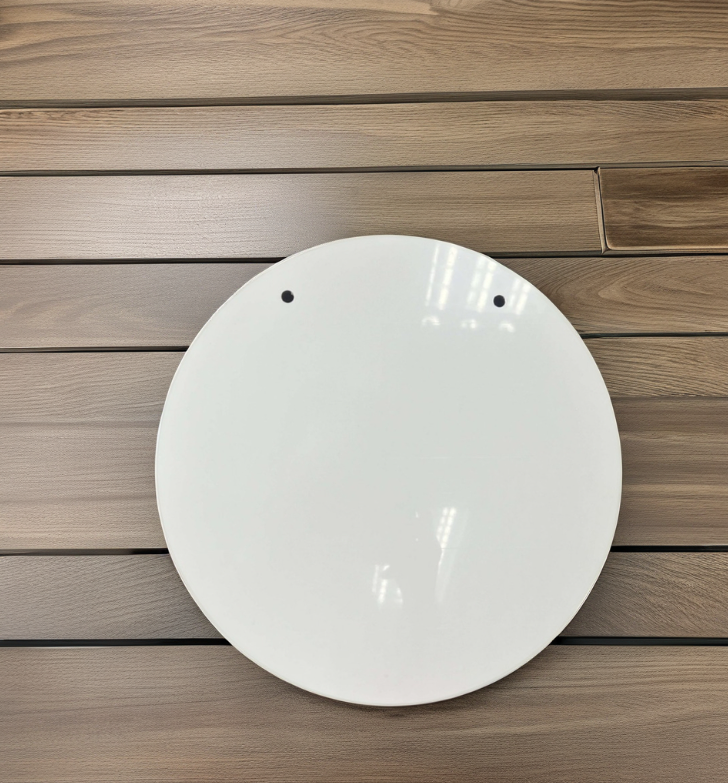

Round blanks are used for clocks, coasters, ornaments, awards, decorative pieces, circular signs and personalized photo products.
Diameter, thickness, finish and packing can be customized for bulk orders.
Mounting or hanging holes can be produced before printing so customers do not need to perform additional drilling after receiving the blanks.
For accurate production, the RFQ or drawing should specify hole diameter, quantity, center location, edge distance and orientation. Holes can be added to round, rectangular, square or rounded-corner blanks.
For OEM projects, Worthwill can evaluate blanks according to customer drawings or physical samples. Dimensions, corner radius, holes, slots and other fabrication details should be agreed before production.

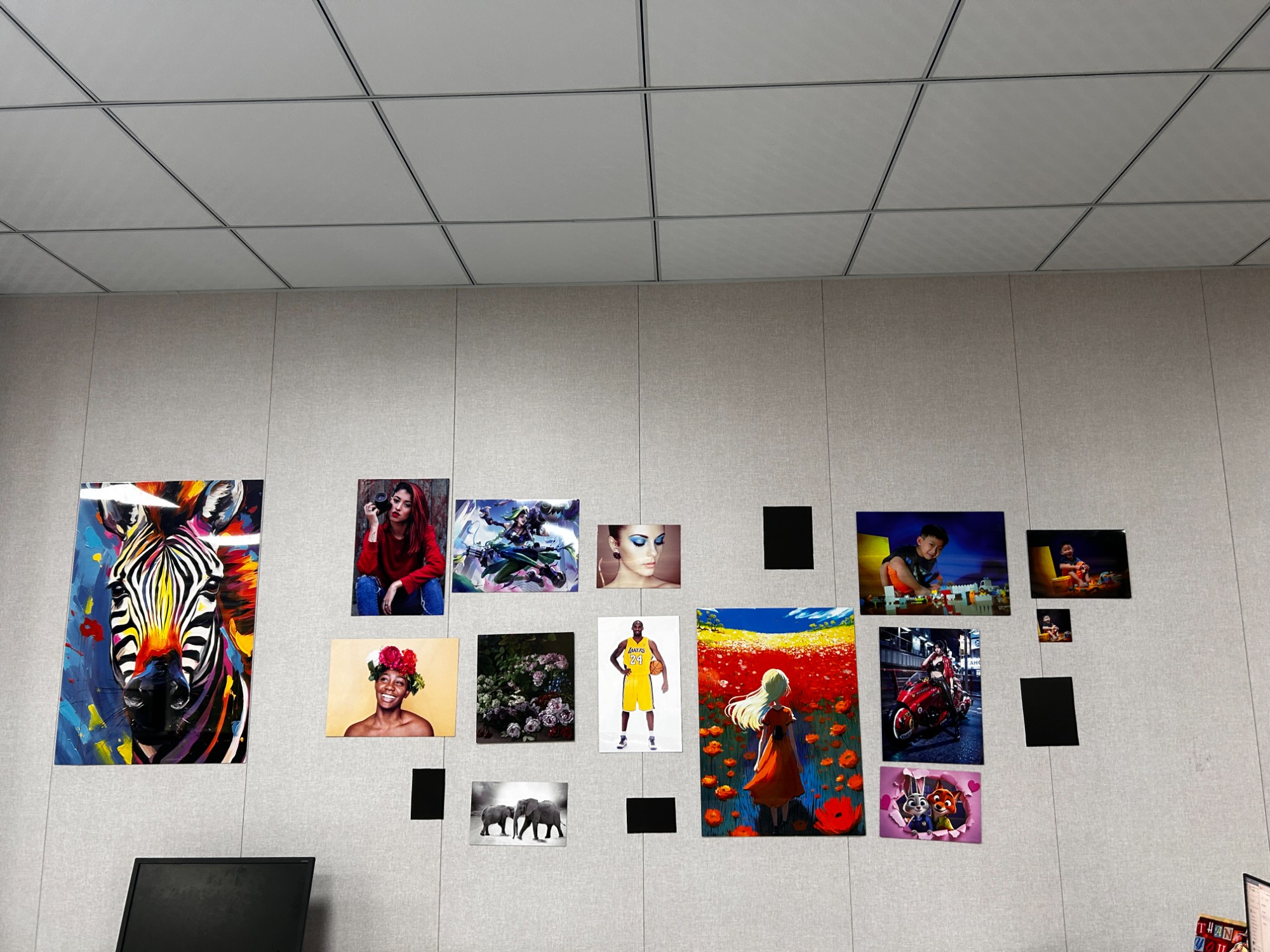

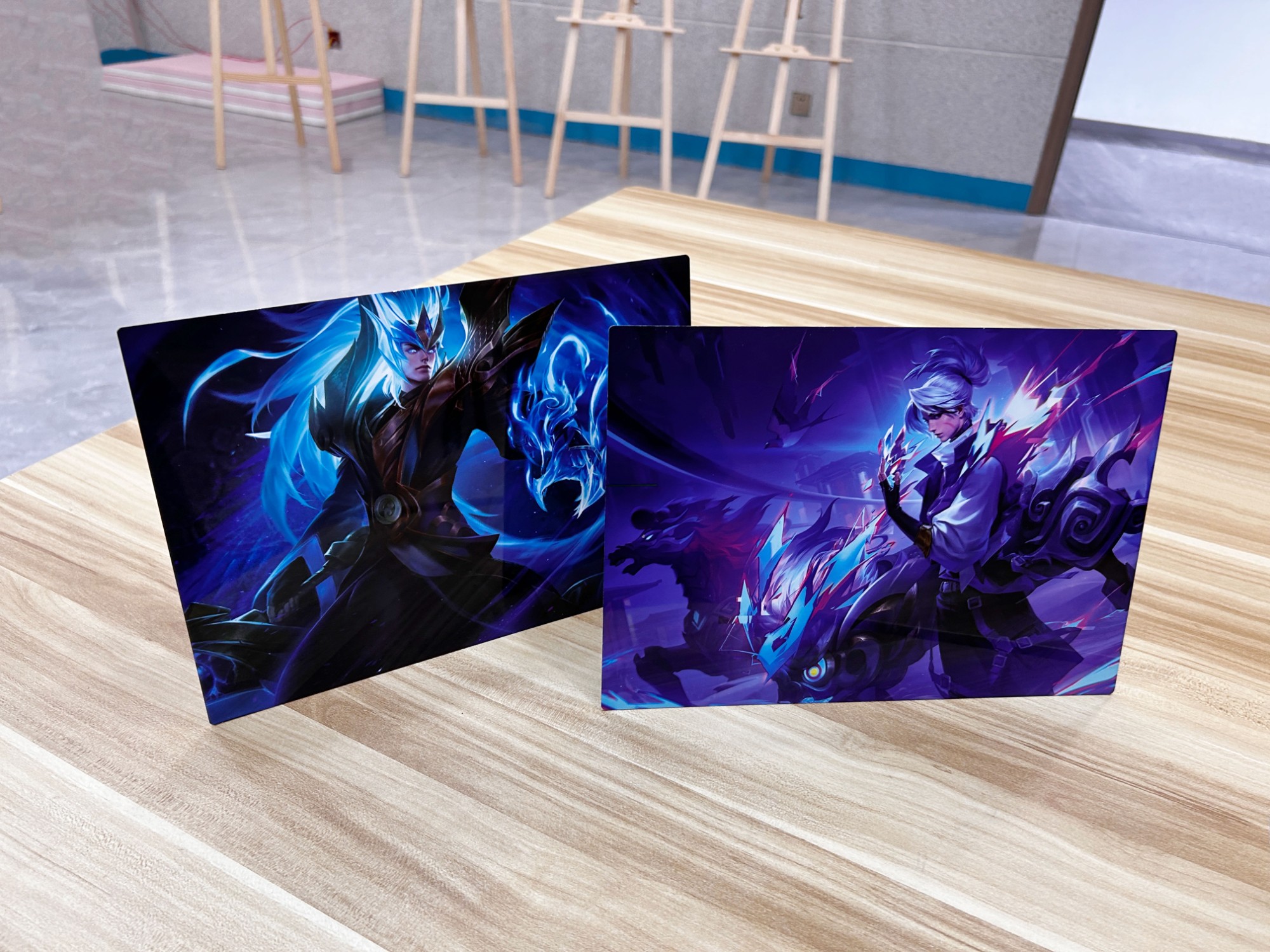

Metal Photo Panels and Wall Art: High-resolution photographs, artwork, family pictures and decorative wall displays.
Advertising and Signage: Brand signs, directional signs, information panels, exhibition graphics and display boards.
Nameplates and Identification Plates: Product labels, logo plates, identification panels and customized marking products.
Awards and Plaques: Commemorative products, recognition plaques, trophies and decorative awards.
Clocks, Coasters and Ornaments: Round and custom-shaped aluminum sublimation blanks for personalized gift and décor markets.
Promotional and Personalized Products: Printed gifts, souvenirs, decorative pieces and customized OEM blanks.
Blank Distribution: Full sheets and processed sublimation blanks for wholesalers, printing-material distributors and downstream fabricators.

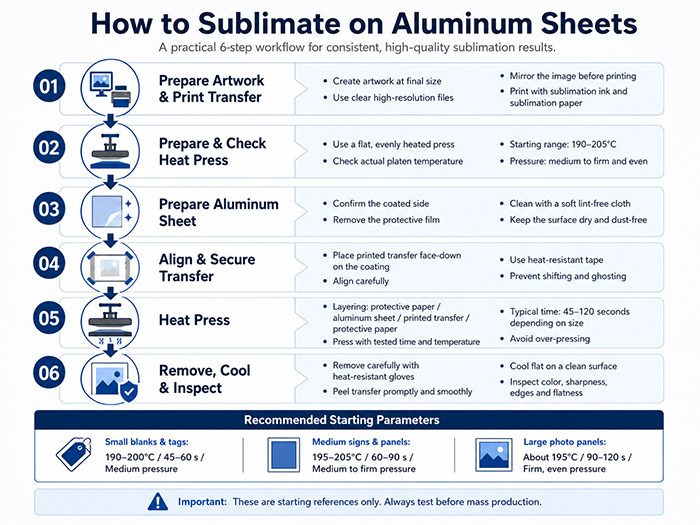

Heat-transfer settings vary with the coating, thickness, blank size, transfer paper, ink system and heat press. The following values should be treated as starting references rather than guaranteed universal settings.
| Product Type | Starting Temperature | Starting Time | Pressure |
|---|---|---|---|
| Small blanks and tags | 190–200°C / 374–392°F | 45–60 seconds | Medium and even |
| Medium panels and signs | 195–205°C / 383–401°F | 60–90 seconds | Medium to firm |
| Larger photo panels | Around 195°C / 383°F | 90–120 seconds | Firm and even |
Before pressing, identify the printable face and remove any protective film from the surface being printed. Keep the panel and transfer paper clean, mirror the artwork when required by the printing workflow and secure the transfer to reduce movement.
A sample press should always be completed before bulk printing. Once satisfactory parameters are established, record the temperature, time, pressure, coating finish, panel thickness, paper and ink system for repeat production.
For a more detailed printing procedure, see How to Print on Aluminum Sheets: A Complete Guide for Lasting Results.
For bulk sourcing, print quality begins before the heat press. Consistency of the incoming blanks helps reduce variation during downstream printing.
Worthwill can confirm inspection requirements with the buyer before production. Typical control points include:
Surface Appearance: Check the printable surface for obvious scratches, contamination, coating defects or handling marks.
Coating Uniformity: Keep the printable face consistent within the approved order specification and reference sample.
Thickness and Dimensions: Check sheet thickness and finished dimensions against the agreed specification.
Corners and Edges: Verify finished blank shape, corner radius and edge condition where specified.
Hole Position: For pre-drilled blanks, confirm diameter, quantity, center position and edge distance against the drawing.
Protective Film: Check whether protective film is required, which face it protects and whether it remains intact through handling and packing.
Packing and Identification: Confirm quantities, mixed-size separation, labels and outer packing according to the purchase order.
For repeat programs or appearance-critical projects, an approved physical sample or printed master sample can be used as a practical reference for future batches.

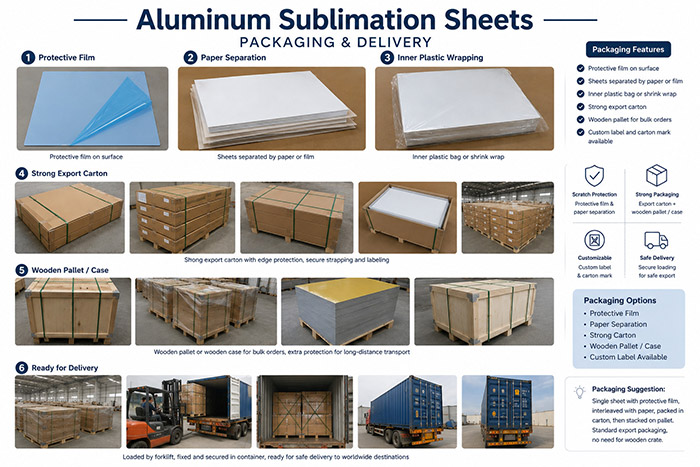

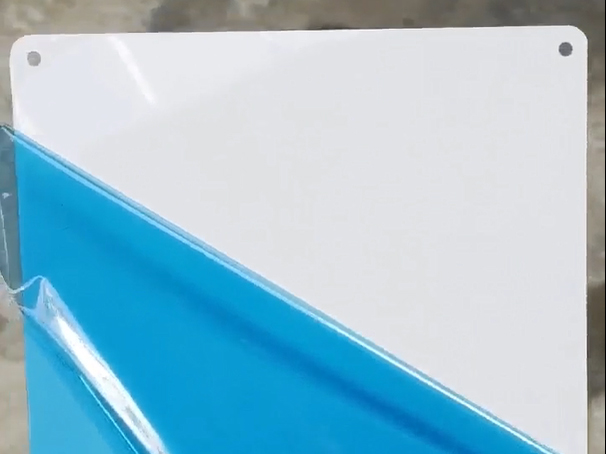

A removable protective film can be supplied where required to help reduce scratches, fingerprints and handling marks before printing. The buyer should confirm which face requires protection and whether the film needs to remain in place through downstream cutting or fabrication.
The protective film must be removed from the printable surface before heat pressing.
Packing should be selected according to blank size, surface sensitivity, quantity and shipping method. Individual separation, cartons, reinforced outer packing and export palletizing can be discussed according to the order.
For finished blanks with several sizes or finishes in one shipment, clear carton and part identification helps simplify incoming inspection and inventory management.
Henan Worthwill Industry Co., Ltd. supplies aluminum sheet, coil, foil and coated aluminum products to international customers. For sublimation aluminum, our focus is not limited to supplying a coated sheet; we also support the downstream specification needed to turn the material into a repeatable printing blank.

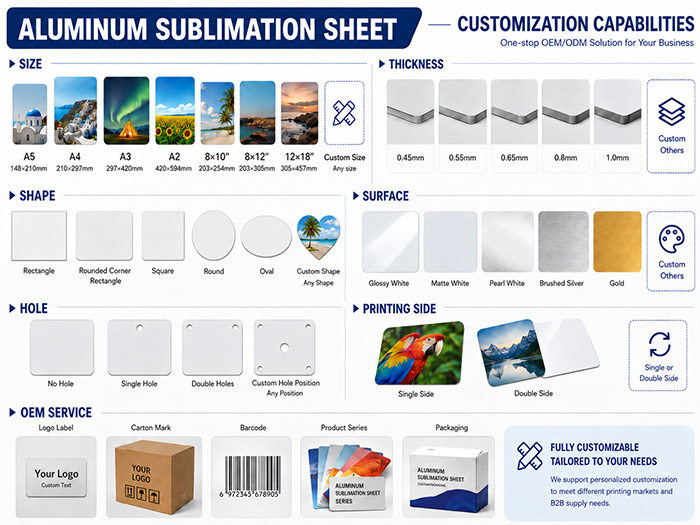

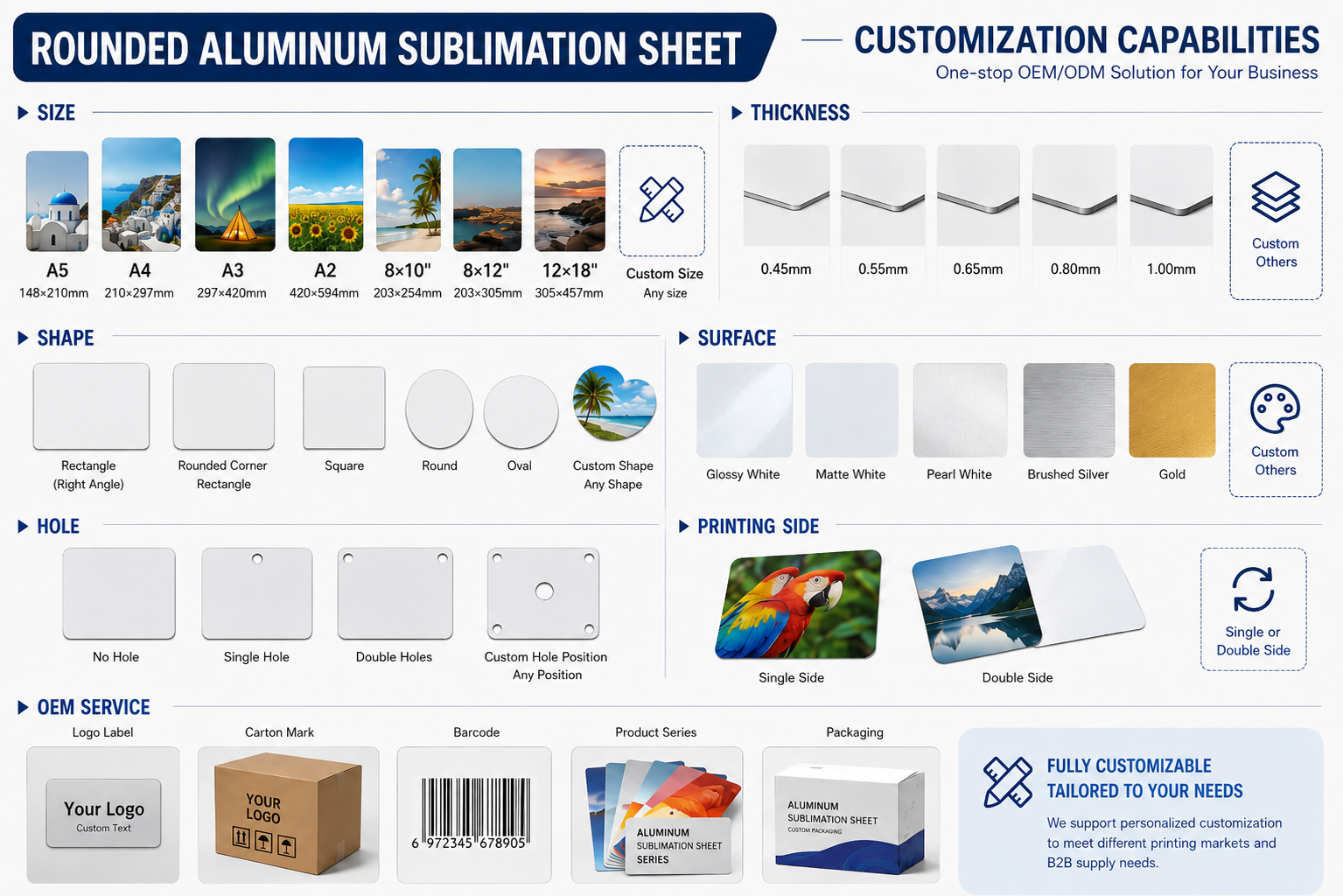

Customers can specify thickness, sheet size, finished blank dimensions, surface finish, corner radius, diameter, hole configuration, protective film and packaging according to their application.
Worthwill supports standard sheet supply as well as cut-to-size and customized processing for distributors, printing factories, sign manufacturers, photo panel suppliers and OEM buyers.
For customized or repeat orders, drawings and approved samples can be used to make purchasing requirements clearer and reduce misunderstandings between the buyer, production team and quality-control team.
Product Condition: Full sheet, cut-to-size panel or finished blank.
Thickness: For example, 0.45 mm, 0.65 mm or 1.0 mm.
Finished Size: Length × width, diameter or drawing dimensions.
Surface Finish: High glossy white, matte white, pearl, brushed, satin, titanium, mirror or other required finish.
Shape and Corners: Rectangle, square, round, rounded corner or custom shape.
Hole Details: Diameter, quantity and exact position if holes are required.
Quantity: Quantity for each size, finish and part number.
Protective Film: Required or not required, and which surface should be protected.
Packing: Bulk packing, separated blanks, customized labels or other requirements.
Application: Photo panel, sign, award, decorative product, blank resale or another end use.
For complex blanks, please send a dimensioned drawing or reference sample together with the inquiry.
For a detailed purchasing specification, see Aluminum Sublimation Blanks Buying Guide: RFQ Checklist for Bulk Orders.
What is the difference between ordinary aluminum sheet and aluminum sublimation sheet?
Ordinary aluminum sheet does not automatically have a surface suitable for dye sublimation printing. Aluminum sublimation sheet has a specially prepared printable coating designed to receive sublimation dyes during heat transfer.
Which finish is best for photo printing?
High glossy white is commonly selected for photographic work because the white background provides strong contrast and the gloss gives the finished image a bright appearance. Matte, pearl, brushed and mirror surfaces create different visual effects, so the best choice depends on the artwork and target product.
What thicknesses are commonly available?
Worthwill commonly supplies 0.45 mm, 0.65 mm and 1.0 mm. Other thicknesses can be discussed according to the product specification and order quantity.
Can you supply custom sizes and shapes?
Yes. In addition to standard rectangular sheets, Worthwill can supply cut-to-size panels, rounded-corner blanks, round blanks, pre-drilled pieces and drawing-based custom shapes for bulk orders.
Can holes be made before sublimation printing?
Yes. Holes can be processed before delivery. For accurate fabrication, specify the hole diameter, quantity, center position and edge distance on the drawing.
What temperature and time should I use for sublimation aluminum?
A common starting range is approximately 190–205°C, with pressing time often between 45 and 90 seconds for smaller and medium products. Larger panels may require longer. These are starting references only; always test the actual coating, ink, paper and press combination before mass production.
Can aluminum sublimation sheets be used outdoors?
Outdoor performance should not be assumed from the term “sublimation aluminum” alone. Service life depends on the coating system, ink, exposure, UV conditions, weather and installation environment. If outdoor durability is critical, state the exposure requirement in the RFQ and approve a suitable material specification before ordering.
Is protective film available?
Yes. Protective film can be discussed according to the finish and handling requirement. The film on the printable face must be completely removed before heat pressing.
Do you offer sample approval before a bulk order?
Sample and pre-production approval can be discussed for projects where appearance, printing compatibility, dimensions or fabrication details need to be confirmed before mass production.
Can you provide OEM packaging?
Yes. Customized packing, labels, mixed specifications and export packaging can be discussed according to order quantity and buyer requirements.
| Item | Specification |
|---|---|
| Product Name | Aluminum Sublimation Sheet / Aluminum Sublimation Blanks |
| Product Type | Full sheet, cut-to-size panel or finished printing blank |
| Material | Aluminum sheet with dye sublimation printable coating |
| Alloy / Temper | Confirm according to order specification if specifically required |
| Common Thickness | 0.25mm, 0.35mm, 0.45 mm, 0.65 mm, 1.0 mm; other thicknesses subject to confirmation |
| Surface Finish | High glossy white, matte white, pearl white/gold/silver, brushed gold/silver/copper, satin gold/silver, titanium gold/silver, mirror gold/silver |
| Common Metric Sizes | A4, A3, A2, 200×300 mm, 300×400 mm, 600×300 mm, 600×400 mm, 610×305 mm, 1200×600 mm |
| Custom Inch Sizes | 5×7, 6×8, 8×10, 8×12, 11×14, 11×17, 12×18, 12×24 in and other cut-to-size dimensions subject to confirmation |
| Shapes | Rectangle, square, rounded corner, round and custom shape |
| Hole Processing | One hole, two holes or drawing-based hole quantity and positions |
| Printing Method | Dye sublimation heat transfer |
| Starting Press Range | Approximately 190–205°C; time and pressure require testing according to product and equipment |
| Protective Film | Available according to specification |
| Packing | According to size, finish, quantity and export requirement |
| MOQ | Depends on size, finish, processing and packing specification |
| Customization | Thickness, dimensions, finish, shape, corner radius, holes, protective film, labels and packing |
| Typical Applications | Metal photo panels, signs, wall art, nameplates, awards, plaques, clocks, coasters, ornaments and custom printing blanks |
Specifications should be confirmed before ordering. For custom parts, please provide finished dimensions, drawings, required surface finish, quantity and packaging requirements.
