Position: Home > Products > Coated Aluminum
Wood grain coated aluminum coil and sheet combines the warm appearance of natural timber with the light weight, formability and dimensional stability of aluminum. It is designed for architectural and decorative production where buyers need a consistent wood pattern without the regular sealing, staining or moisture-related movement associated with natural wood.
Henan Worthwill Industry Co., Ltd. supplies wood grain aluminum in coil, cut-to-length sheet and slit strip. Standard production covers 1060, 1100, 3003 and 3004 alloys, H24 or application-specific temper, 0.25–1.35 mm thickness, widths from 30 to 1350 mm and a front coating thickness of at least 25 μm, subject to final technical confirmation.
PE and PVDF coating options are available for different indoor and outdoor requirements. Buyers can select standard oak, walnut, teak, cherry, maple and pine effects or submit an approved physical sample for custom color and grain matching.
Worthwill manufactures wood grain coated aluminum coil and sheet for building materials, interior finishing, furniture components and OEM fabrication. The surface reproduces the color and visual rhythm of timber while the aluminum base remains light, stable and suitable for slitting, cutting, bending and panel production.
This page covers prepainted wood grain aluminum supplied as continuous coil, cut-to-length sheet and narrow slit strip. It is not natural wood veneer and it is not a loosely attached decorative film. The wood pattern and protective coating are applied to the prepared aluminum surface and cured under controlled production conditions.
Because every project has different forming, weathering and appearance requirements, the alloy, temper, coating system, gloss and pattern should be confirmed together. Final production is based on an approved color sample and technical specification.
Wood grain coated aluminum, also called wood look aluminum, wood finish aluminum or timber look aluminium, is aluminum coil or sheet finished with a printed pattern that resembles natural wood. Common designs include oak, walnut, teak, cherry, maple, pine and dark or light custom wood effects.
Compared with natural timber, the aluminum substrate does not absorb moisture, swell or shrink in the same way. It also offers a consistent industrial surface for repeat production. These characteristics make wood grain aluminum suitable for projects that need a warm decorative appearance together with predictable fabrication and lower routine maintenance.

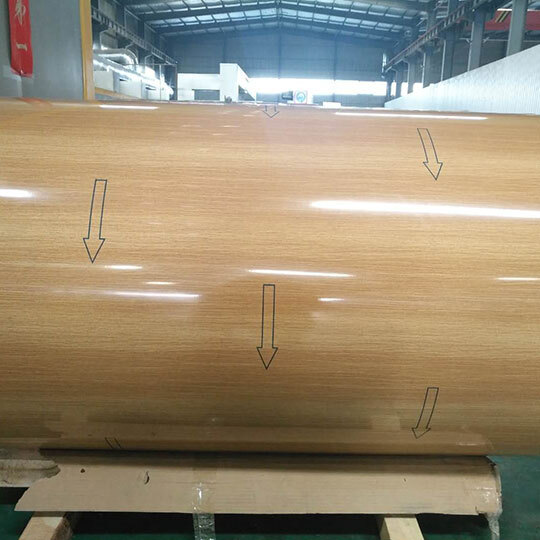

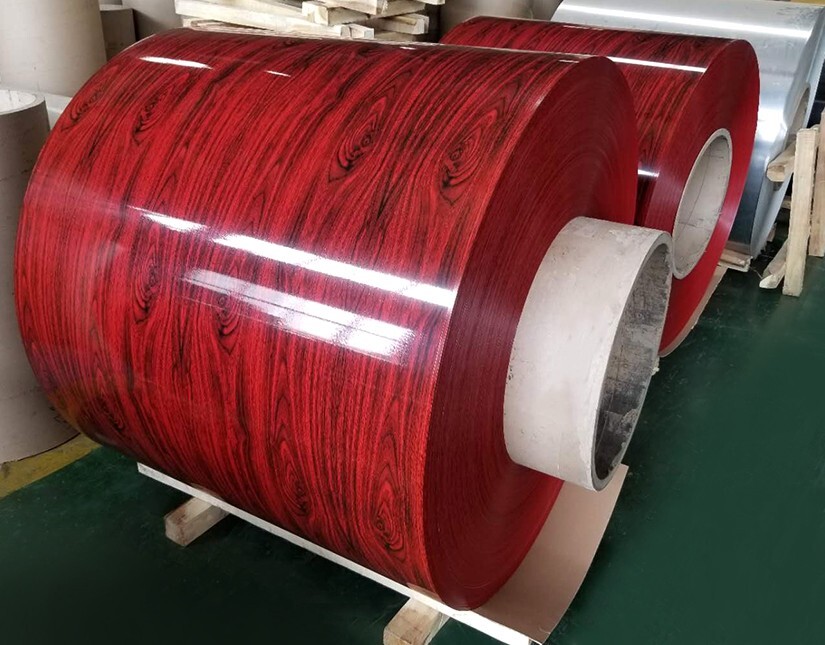

Continuous wood grain aluminum coil is suitable for roll forming, slitting, lamination and automated panel production. Coil supply helps manufacturers reduce joints and maintain a consistent grain direction over longer production runs.
Cut-to-length wood grain aluminum sheet is supplied for CNC cutting, bending, punching, cabinet and furniture panels, ceiling panels, wall systems and general decorative fabrication. Sheet length and protective film can be confirmed according to the processing plan.
Narrow slit strip or wood grain aluminum trim coil can be produced for edge trim, soffits, fascia, decorative profiles, door components, partitions and other formed parts. Slit width tolerance and coil weight should be agreed before production.
PE wood grain coating: A practical option for interior decoration, furniture components, ceilings and other applications with moderate weathering requirements. PE systems offer good color flexibility and economical production for many decorative projects.
PVDF wood grain coating: Commonly selected for exterior cladding, soffits, facade elements and projects exposed to stronger sunlight and weather. The final coating specification should be chosen according to climate, installation position, expected service conditions and required warranty.
Back coating: A protective back coat can be supplied to support handling, lamination and general corrosion protection. Back-coat type and color can be customized when the downstream process requires a specific surface.

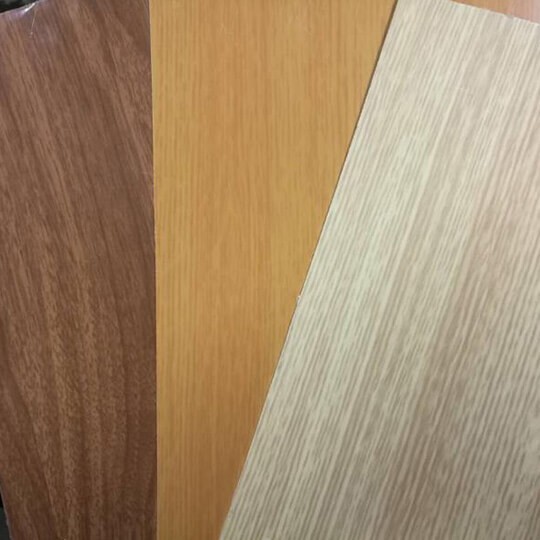

Standard wood effects can include light oak, white oak, golden oak, walnut, dark walnut, teak, cherry, maple, pine, rosewood and other decorative patterns. Surface appearance may be smooth, matte, gloss or lightly textured, depending on the selected design and coating system.
For project-specific colors, buyers can send a physical wood sample, coated metal sample or approved pattern reference. Worthwill will evaluate color, grain direction, repeat length, gloss and production feasibility before preparing a confirmation sample.
Digital screen colors are only a reference. Final production should always follow an approved physical sample because monitor settings, lighting and viewing angle can change the apparent color.
Natural decorative appearance: Wood-inspired colors and grain patterns provide a warm visual effect for modern architectural and interior projects.
Lightweight and workable: The material can be slit, cut, punched, laminated and bent when the correct alloy, temper and coating system are selected.
Stable dimensions: Aluminum does not absorb water or experience the same moisture-driven swelling and shrinkage as natural timber.
Lower routine maintenance: The coated surface does not require regular staining or sealing. Normal cleaning requirements depend on the installation environment.
Consistent batch production: Approved samples, controlled coating and inspection help maintain a more repeatable color and pattern across production lots.
Recyclable metal base: The aluminum substrate can enter established aluminum recycling streams after the product reaches the end of its service life, subject to local recycling conditions.
Architectural cladding and facade elements: Exterior wall panels, curtain wall components, column covers, canopies and decorative facade details.
Soffits, fascia and trim: Eaves, roof-edge trim, entrance canopies and formed exterior details requiring a wood appearance.
Ceilings and interior wall systems: Commercial ceilings, lobby walls, corridors, partitions, acoustic panel facings and decorative screens.
Aluminum composite and sandwich panels: Decorative face material for ACP, honeycomb panels, insulation panels and laminated building products.
Furniture, doors and cabinets: Cabinet skins, door panels, shelving, furniture components and interior fit-out systems.
Retail and hospitality projects: Shop displays, counters, hotel interiors, restaurants, exhibition systems and branded decorative surfaces.
OEM decorative fabrication: Signage, appliance panels, partitions, fencing components, gates and custom formed metal products.
For interior decoration: Confirm the required color, gloss, cleanability and forming method. PE coating is often suitable when strong outdoor weather resistance is not required.
For exterior cladding: Provide the project location, exposure conditions, panel design and expected performance. PVDF coating, suitable pretreatment and an appropriate alloy-temper combination should be evaluated together.
For ACP or lamination: Confirm surface flatness, back-coat requirements, adhesive compatibility, coil width and downstream line speed.
For bending or roll forming: Provide the bend radius, forming direction, tool type and whether the grain will run parallel or perpendicular to the bend. A forming sample is recommended before mass production.
For repeat orders: Keep the approved sample number and order specification. Small color differences can occur between production batches, so one project should be planned with batch consistency in mind.
Step 1 – Substrate inspection: Aluminum alloy, temper, thickness, width and surface condition are checked against the production order.
Step 2 – Cleaning and pretreatment: The aluminum surface is cleaned and pretreated to support coating adhesion and corrosion protection.
Step 3 – Primer and base color: The primer and background color are applied according to the selected coating system.
Step 4 – Wood grain coating: The approved pattern is transferred through controlled coating equipment with attention to grain direction and repeat consistency.
Step 5 – Oven curing: The coating is cured under controlled line conditions to form a bonded decorative surface.
Step 6 – Cooling and inspection: The surface is checked for color difference, gloss, coating thickness, adhesion, pattern defects, scratches and contamination.
Step 7 – Recoiling or cut-to-length: Finished material is recoiled, slit or cut into sheets according to the order.
Step 8 – Packing: Coils and sheets are protected for handling and packed for export transportation according to product form and shipping method.
To prepare an accurate quotation, please provide the product form, alloy, temper, thickness, width, sheet length or coil weight, coating system, front and back coating requirements, wood pattern, gloss, protective film, order quantity and final application.
For exterior or heavily formed products, also provide the project location, exposure conditions, fabrication method, bend requirement and any test or certification requirements. These details help avoid choosing a coating or temper that is not suitable for the actual process.
Coil, sheet and slit strip supply: Buyers can source different product forms from one production specification.
Custom sample matching: Standard wood patterns and project-specific color development are available after technical evaluation.
Application-based specification support: Alloy, temper, coating and dimensions are reviewed according to the end use and forming process.
Production inspection: Color, pattern, dimensions and coating condition are checked during production and before packing.
Export packing and shipment support: Packing can be arranged for coils, sheets and slit strips to reduce handling damage during international transport.
Wood grain coated aluminum is aluminum coil or sheet finished with a printed wood pattern and protective coating. It provides the visual effect of timber while retaining the light weight, formability and dimensional stability of aluminum.
Yes, when the alloy, pretreatment, coating system and installation design are selected for the exposure conditions. PVDF systems are commonly specified for exterior architectural use, while final suitability should be confirmed for the project environment.
Coil is supplied in continuous rolls for automated forming, slitting and panel production. Sheet is cut to a specified length for fabrication, CNC cutting, bending, lamination and smaller production batches.
Yes. Standard patterns include oak, walnut, teak, cherry, maple and pine. Custom color and grain matching can be developed from an approved physical sample, subject to production confirmation.
Yes. The material can be slit, cut, punched and bent when the correct alloy, temper and coating system are selected. Buyers should provide the forming method and minimum bend requirements before production.
Yes. Buyers can request available color samples or submit a physical wood grain reference for matching. Final production should be based on an approved sample.
All specifications and application recommendations are subject to final technical confirmation. Actual production limits may vary with alloy, temper, width, thickness, coating system, pattern and order quantity.
| Product Name | Wood Grain Coated Aluminum Coil & Sheet |
| Product Forms | Coil, cut-to-length sheet and slit strip / trim coil |
| Alloy | 1060, 1100, 3003, 3004; other alloys subject to technical confirmation |
| Temper | H24 or customized according to the application and forming method |
| Thickness | 0.25–1.35 mm |
| Width | 30–1350 mm |
| Sheet Length | Cut to size according to order requirements |
| Coating System | PE or PVDF |
| Front Coating Thickness | At least 25 μm |
| Back Coating | Protective back coat or customized requirement |
| Wood Patterns | Oak, walnut, teak, cherry, maple, pine, rosewood, light wood, dark wood and custom sample matching |
| Surface Appearance | Smooth, matte, gloss or lightly textured, subject to pattern and coating system |
| Protective Film | Available on request |
| Monthly Capacity | 500 tons |
| Main Applications | Cladding, facades, ceilings, soffits, fascia, ACP, sandwich panels, furniture, doors, cabinets, partitions, displays and OEM fabrication |
| Packing | Seaworthy export packing for coils, sheets or slit strips according to product form |
Specifications are subject to final technical confirmation. Production limits may vary with alloy, temper, width, thickness, coating system, pattern and order quantity.
Send us your product, alloy, size, quantity and application requirements for a detailed quotation.
